Customizable Size High Strength Fabric Dividing Curtains with Electric Control System for Efficient Space Division

Customizable Size High Strength Fabric Dividing Curtains with Electric Control System for Efficient Space Division

Markenbezeichnung: Flyon Sports
Modellnummer: Vorhang teilen
MOQ: 50 m²
Preis: 46-100 dollars per SQM
Zahlungsbedingungen: T/T
Versorgungsfähigkeit: > = 50000 m²/Monat
Einzelheiten
Herkunftsort:
China
Zertifizierung:
SGS/GB-8624
Material:
PVC / Hochfächer -Stoff
Farbe:
Rot, blau, grün, gelb, weiß, grau und angepasst
GRÖSSE:
Anpassbar
Hubgeschwindigkeit:
7,5 Meter / Minute
Atmungsaktivität:
> 45%
Reißfestigkeit:
GB/T 3917.3-2009
Verpackung Informationen:
Holzkisten
Versorgungsmaterial-Fähigkeit:
> = 50000 m²/Monat
Hervorheben:

Customizable Size Dividing Curtains

,

High Strength Fabric Divider Curtain

,

Electric Control System Partition Curtain

Produkt-Beschreibung
Customizable Size High Strength Fabric Dividing Curtains with Electric Control System for Efficient Space Division
Our divider curtain systems provide efficient space division solutions for sports facilities, offering customizable configurations to meet your specific requirements.
Single Curtain System Specifications
Product Name Divider Curtain Total Hanging Weight ≤ 2.5 kg/m
Maximum Height 12m Hanging Spacing ≤ 3m
Maximum Width 36m Maximum Bearing Capacity (per lifting point) ≤ 80kg
Maximum Area 300m² Maximum Hanging Weight ≤ 750kg
Color Choices
Customizable Size High Strength Fabric Dividing Curtains with Electric Control System for Efficient Space Division 0
Customizable Size High Strength Fabric Dividing Curtains with Electric Control System for Efficient Space Division 1
Model Options
Customizable Size High Strength Fabric Dividing Curtains with Electric Control System for Efficient Space Division 2
Installation Safety Requirements
Maintain a safety gap of at least 50cm between this partition curtain system and adjacent partition curtains or walls
Leave a safety clearance of at least 15cm on the side without the motor drive system
Ensure at least 5cm clearance between the bottom of the partition curtain and the ground
Electric and Control System
The middle reel features a high-performance drum motor (220V, 450W, 120N/M) with internal meshing planetary gear reducer, upper and lower position brake limiters, button limit switches, automatic reset and thermal overload protection system for stable and reliable operation.
Product Advantages
Double curtains made of high-quality PVC for sound absorption
Partial mesh design allows light transmission
Complete system includes all required materials, parts, and load-bearing aluminum trusses
Environmentally friendly, tear-resistant, high-strength, and fire-resistant materials
Simple to use with multiple customization options available

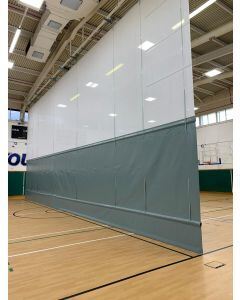

Project Presentation
Customizable Size High Strength Fabric Dividing Curtains with Electric Control System for Efficient Space Division 3
Customizable Size High Strength Fabric Dividing Curtains with Electric Control System for Efficient Space Division 4
Customizable Size High Strength Fabric Dividing Curtains with Electric Control System for Efficient Space Division 5
Customizable Size High Strength Fabric Dividing Curtains with Electric Control System for Efficient Space Division 6
