High Speed 7.5m/min Customizable Size and Color Sports Hall Divider Curtain with 2 Years Warranty

High Speed 7.5m/min Customizable Size and Color Sports Hall Divider Curtain with 2 Years Warranty

Markenbezeichnung: Flyon, Flyon
Modellnummer: 7,5 Meter / Minute
MOQ: 500
Preis: CN¥294.85-315.47
Einzelheiten
Herkunftsort:
China, China
Hubgeschwindigkeit:
7,5 Meter / Minute
Material:
Mesh/Vinyl
Motorspannung:
220 V Wechselstrom
Motortyp:
Rohrmotor
Motordurchmesser:
3 Fuß
Stapeldimension:
50 cm
Höchstlänge:
20 m
Höchstfläche:
125 m²
Motorsynchronisation:
Zwei synchronisierte Motoren für größere Vorhänge
Betriebsoptionen:
Schlüsselschalter oder Funkfernbedienung
Überlastschutz:
Automatischer thermischer Überlastschutz
Unteres Rohr:
Gepolstert
Nahttyp:
Horizontale Nähte
Motorleistung:
100 Nm
Motorphase:
Einphasen
Hervorheben:

7.5 meters per minute lifting speed Sports Hall Divider Curtain

,

Customizable size and color Gymnasium Divider Net

,

2 Years Warranty Indoor Sports Court Divider

Produkt-Beschreibung

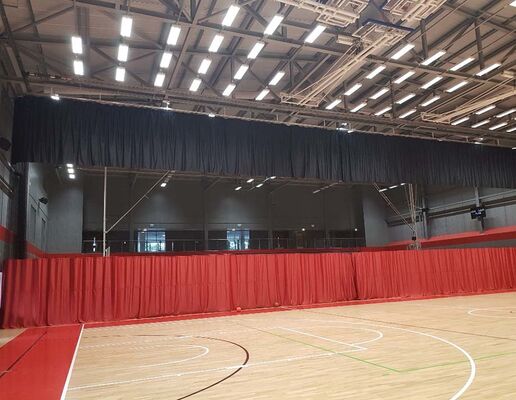

Center Roll Divider Curtain System
High Speed 7.5m/min Customizable Size and Color Sports Hall Divider Curtain with 2 Years Warranty 0
The Center Roll Divider features an innovative overhead design for gymnasiums that eliminates traditional hoist cables, straps, and overhead support rollers. This advanced system provides minimal stack height for maximum space utilization.
As the aluminum drive tube rotates, it efficiently moves the curtain upward, rolling both top and bottom sections neatly and compactly toward the ceiling. This design eliminates common wear points found in other divider systems and enables the Center-Roll to operate twice as fast as standard curtains.
The assembly operates with minimal noise and includes automatic overheating protection. Permanently lubricated components ensure maintenance-free operation. When directly attached to roof structures, this divider maintains a stack dimension within 50cm of the ceiling or overhead support structure for optimal clearance.
The system achieves fast folding action at 7.5 meters per minute and is available in solid, mesh, or combination configurations with customizable finishes.
Product Specifications
Item Specification
Place of Origin China
Product Name Sports Hall Dividing Curtains
Color Customizable
Brand Flyon
Material High-strength polyester fiber or glass fiber fabric with PVC coating
Suitable Places Gymnasium, schools, basketball courts
Motor System Details
High Speed 7.5m/min Customizable Size and Color Sports Hall Divider Curtain with 2 Years Warranty 1

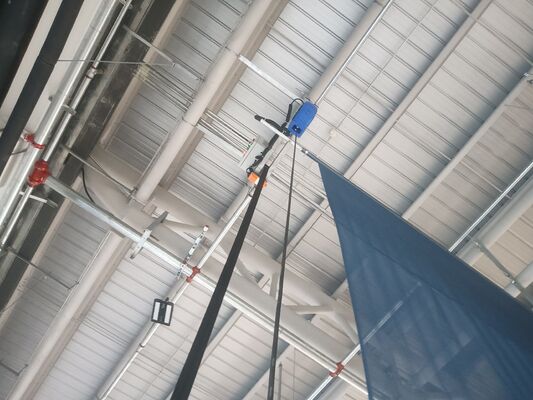

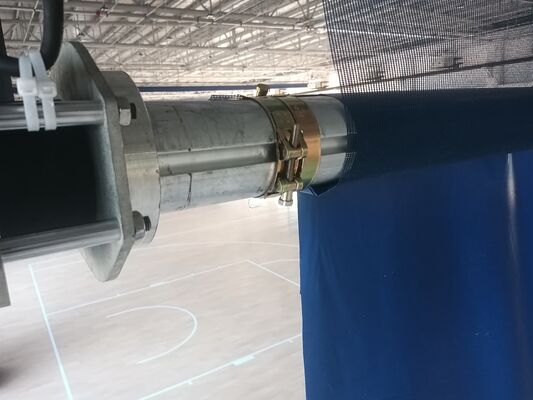

Utilizes 100 Nm, 220 V AC tubular motors with 3-foot diameter. The tubular-type motor (220V, single-phase) includes gear reducer and brake mechanism concealed inside the horizontal batten tube. Motor is equipped with up/down push-button limit switches and automatic reset thermal overload protection.
Motor Configuration
High Speed 7.5m/min Customizable Size and Color Sports Hall Divider Curtain with 2 Years Warranty 2
Curtains up to 125 m² or 20 meters long use single motor. Larger curtains utilize two synchronized motors for optimal performance. Includes key switch operation as standard, with wireless remote control available as an option.
Performance Specifications
High Speed 7.5m/min Customizable Size and Color Sports Hall Divider Curtain with 2 Years Warranty 3
Typical stacking dimension is approximately 50 cm. Curtain raises or lowers at a rate of approximately 7.5 meters per minute for efficient operation.

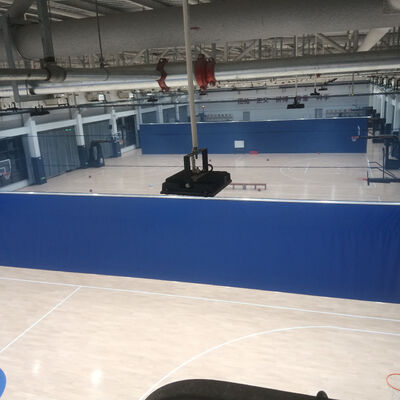

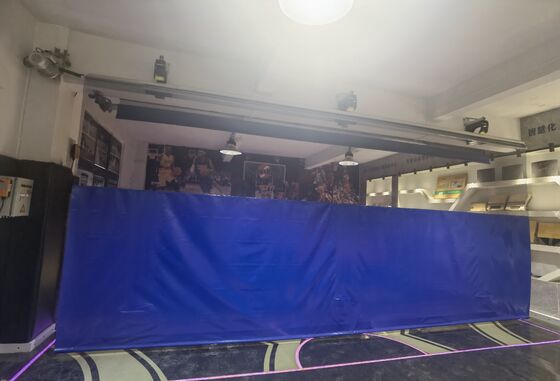

Available Configurations
High Speed 7.5m/min Customizable Size and Color Sports Hall Divider Curtain with 2 Years Warranty 4
  • Solid and Mesh: Combination with padded bottom tube
  • All Solid: Complete solid construction with padded bottom tube
  • All Mesh: Full mesh design with padded bottom tube
Available in wide variety of vinyl and mesh colors to match any facility design requirements.

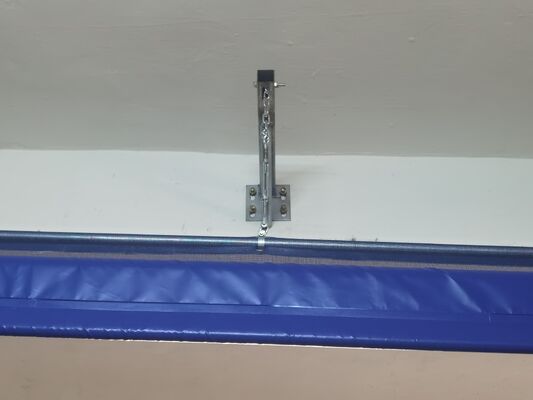

Construction Features
High Speed 7.5m/min Customizable Size and Color Sports Hall Divider Curtain with 2 Years Warranty 5 High Speed 7.5m/min Customizable Size and Color Sports Hall Divider Curtain with 2 Years Warranty 6
Horizontal seams engineered to allow smooth rolling action and consistent performance throughout the system's lifespan.
Quality Certifications
High Speed 7.5m/min Customizable Size and Color Sports Hall Divider Curtain with 2 Years Warranty 7 High Speed 7.5m/min Customizable Size and Color Sports Hall Divider Curtain with 2 Years Warranty 8 High Speed 7.5m/min Customizable Size and Color Sports Hall Divider Curtain with 2 Years Warranty 9
Packaging & Shipping
High Speed 7.5m/min Customizable Size and Color Sports Hall Divider Curtain with 2 Years Warranty 10 High Speed 7.5m/min Customizable Size and Color Sports Hall Divider Curtain with 2 Years Warranty 11 High Speed 7.5m/min Customizable Size and Color Sports Hall Divider Curtain with 2 Years Warranty 12 High Speed 7.5m/min Customizable Size and Color Sports Hall Divider Curtain with 2 Years Warranty 13 High Speed 7.5m/min Customizable Size and Color Sports Hall Divider Curtain with 2 Years Warranty 14 High Speed 7.5m/min Customizable Size and Color Sports Hall Divider Curtain with 2 Years Warranty 15
Company Profile
Flyon has specialized in EPDM and SBR granules production for over ten years, bringing extensive expertise to sports facility solutions.
High Speed 7.5m/min Customizable Size and Color Sports Hall Divider Curtain with 2 Years Warranty 16 High Speed 7.5m/min Customizable Size and Color Sports Hall Divider Curtain with 2 Years Warranty 17 High Speed 7.5m/min Customizable Size and Color Sports Hall Divider Curtain with 2 Years Warranty 18
Frequently Asked Questions
What is your delivery time?
We offer flexible delivery schedules. For in-stock items and mass production, delivery times are approximately 5 working days and 25-35 working days respectively.
Can you provide warranty?
Yes! We provide 5 years quality warranty and 10 years backup support for all our products.
Can I get your samples?
Yes! Flyon Sports offers free samples for our customers, with approximately 3 days preparation time.
Do you provide OEM service?
Yes! We provide comprehensive OEM and ODM services to meet your specific requirements.
