Customizable Color High Strength Fabric Dividing Curtains with Electric Control System for Efficient Space Separation

Customizable Color High Strength Fabric Dividing Curtains with Electric Control System for Efficient Space Separation

Markenbezeichnung:	Flyon Sports
Modellnummer:	Vorhang teilen
MOQ:	50 m²
Preis:	46-100 dollars per SQM
Zahlungsbedingungen:	T/T
Versorgungsfähigkeit:	> = 50000 m²/Monat

Einzelheiten

Produkt-Beschreibung

Einzelheiten

Herkunftsort:

China

Zertifizierung:

SGS/GB-8624

Material:

PVC / Hochfächer -Stoff

Farbe:

Anpassbar

Muster:

Anpassbar

Umweltleistung:

GB-18586

Atmungsaktivität:

> 45%

Reißfestigkeit:

GB/T 3917.3-2009

Verpackung Informationen:

Holzkisten

Versorgungsmaterial-Fähigkeit:

> = 50000 m²/Monat

Hervorheben:

Customizable Color Dividing Curtains

High Strength Fabric Divider Curtain

Electric Control System Partition Curtain

Produkt-Beschreibung

Customizable Color High Strength Fabric Dividing Curtains with Electric Control System for Efficient Space Separation

Our dividing curtain systems provide the perfect solution for efficiently separating spaces in industrial and commercial facilities. Designed for maximum performance and reliability, these curtains offer superior functionality while maintaining visual appeal.

Single Curtain System Specifications

Product Name	Divider Curtain	Total Hanging Weight	≤ 2.5 kg/m
Maximum Height	12m	Hanging Spacing	≤ 3m
Maximum Width	36m	Maximum Bearing Capacity (per lifting point)	≤ 80kg
Maximum Area	300m²	Maximum Hanging Weight	≤ 750kg

Color Options

Model Variations

Installation Safety Requirements

A safety gap of at least 50 cm should be reserved between this partition curtain system and adjacent partitions or walls
A safety clearance of at least 15 cm should be maintained on the side without motor drive system
At least 5 cm ground clearance must be reserved between the bottom of the partition curtain and the ground

Electric and Control System

High-performance drum motor (220V, 450W, 120N/M) with internal planetary gear reducer
Integrated up-and-down position brake limiter and push-button limit switch
Automatic reset and thermal overload protection system built into the middle winding drum
Ensures stable and reliable operation in all conditions

Product Advantages

Double curtains constructed from high-quality PVC for superior sound absorption
Partial mesh design allows natural light transmission while maintaining separation
Complete system includes all required materials, parts, and aluminum truss load-bearing structure
Environmentally friendly, tear-resistant, high-strength, and fire-resistant materials
Simple to operate with multiple customization options available

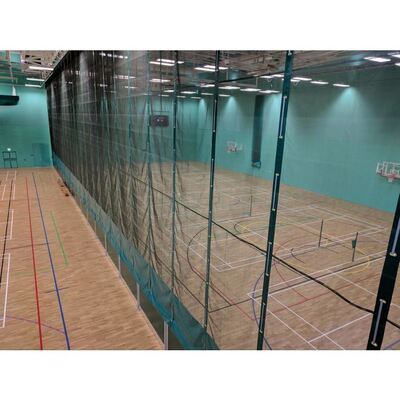

Project Showcase
